- Size: 6940mm*1350mm*1550mm
- Place of Origin: Botou of Cangzhou
- Brand Name: XDL
- Model Number: 950
- Weight: 3800.000 kg
- :

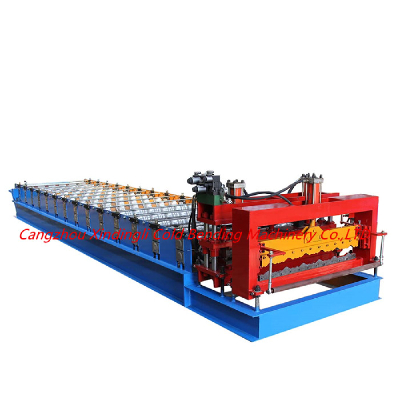

Technical Parameters For Glazed Roof Tile Roll Forming Machine
Model NO. XDL950
Material Spec Color steel coil, Galvanized sheet, Aluminum plate
Condition New
Usage Roof, Wall
Color Blue or green with red or as you desire
Raw material width 1200mm
Thickness 0. 3 mm to 0. 8 mm
Coils stress 235mpa
Working Speed 1.0-4.0 m / min
Total Power(Hydraulic station power) : 7 . 5 Kw
Uncoiler Max. Capacity: 5 000kgs
Inner coil dia. 508mm
Roller and stand about 14 stands
Machine dimension about 6940mm*1350mm*1550mm(length*wide*height)
(can be put into one 40 ’ container)
Type of cutting Roll-formed and length-set hydraulic cutting
Control System PLC with touch screen
Certification CE, ISO
Origin Botou Cangzhou Hebei
- Size: 6940mm*1350mm*1550mm
- Place of Origin: Botou of Cangzhou
- Brand Name: XDL
- Model Number: 950
- Weight: 3800.000 kg
- :

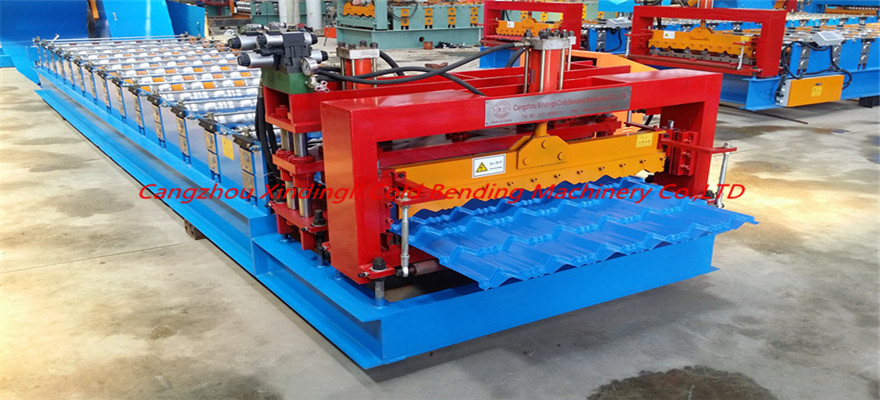

Detailed Parameters for Glazed Roof Tile Roll Forming Machine
Raw material | |
Material spec | colored steel, galvanized steel sheet, aluminum sheet |
Thickness of coil sheet | 0.3-0.8 mm |
Material expand width | 1200mm |
Efficiency width | 950 mm |
Wave height | 23 mm |
Wave length | 190 mm |
Machine details | |
Roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
Shaft material | High grade NO. 45 carbon wrought steel |
Cutting blade | Cr12 mould steel with quenched treatment |
Diameter of shaft | 70mm or as your requirement |
Main frame | 300 H steel |
Forming steps | 14 rows |
Productivity | 2-4 m/min |
Hydraulic station power | 7.5 KW (5 HP) |
Hydraulic pressure | 10-12MPa |
Controlling system | famous PLC computer control |
Material of cutting table | Cr 12 mould steel with quenched treatment |
Appearance size | 6940mm*1350mm*1550mm |
Hydraulic oil | 40# hydraulic oil |
Electric tension | 380V 50 Hz 3 Phase or as your requirements |
After sale-services | |
Delivery | 25-30 workdays after receiving the deposit |
Warranty | Two years warranty and lifelong technical support will be kind and effective provided. |
Payments | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |
